Taking advantage of its experience, VANNES RIGAU S.A.S. offers a complete range of parallel slide gate valves, globe valves, swing check valves and strainers.

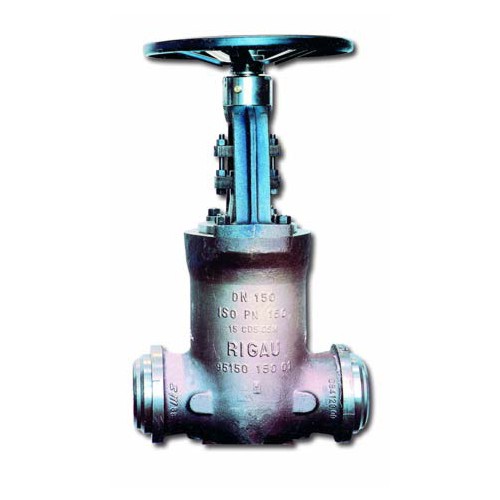

Parallel slide gate valves - Pressure seal bonnets
Gate valve for high pressure and high temperature steam butt welding ends.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 100 to 420
ND 2" (50) to 24" (600)
Ends: butt welding or flanged or special on request
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
By Pass
Multi valve by pass
Equalizing line
Special request on demand

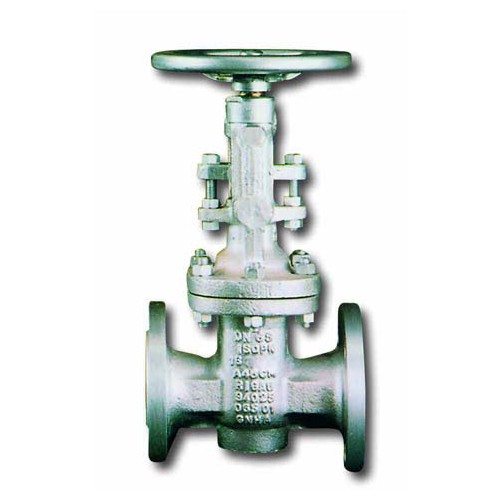

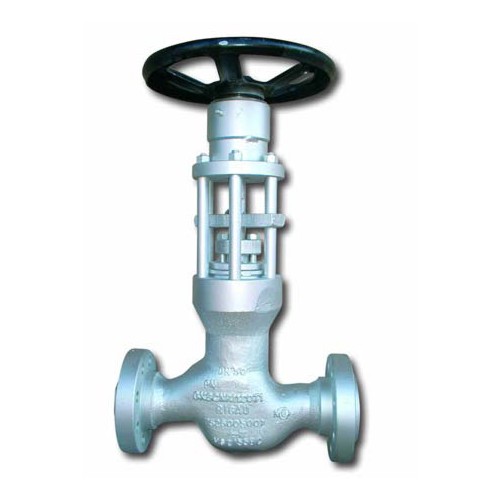

Parallel slide gate valves - Bolted bonnets
Gate valve for low and medium pressure steam with flanges or butt welding ends.
Carbon steel: A 216 WCB/WCC/LCB
Alloy Steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 100
ND 2" (50) to 24" (600)
Ends: butt welding or flanged as per NFA and DIN
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
By Pass
Multi valve by pass
Equalizing line
Special request on demand

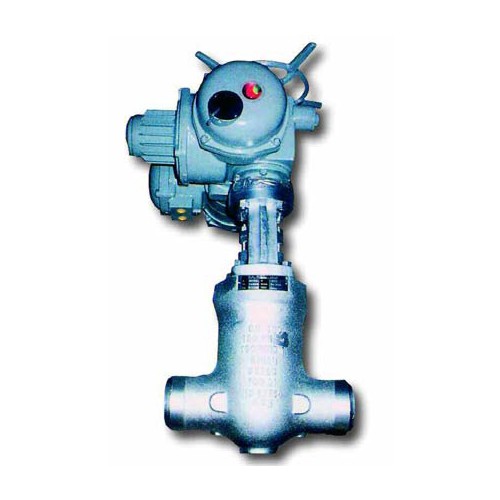

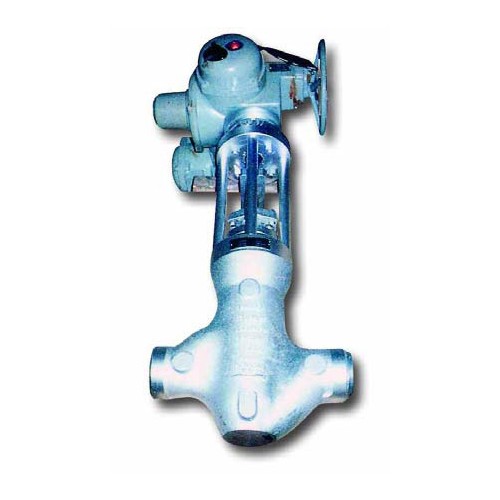

Parallel slide gate valves motorised
Parallel slide pressure seal gate valve fitted with electric actuator (weather proof or explosion proof enclosures...)
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
ND 2" (50) to 24" (600)
Ends: butt welding or flanged or special on request
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
By Pass
Multi valve by pass
Equalizing line
Special request on demand
Actuation:
All ty are available, electric, pneumatic or hydraulic
As per customer specification and vendor list
Parallel slide gate valves with by-pass
Parallel slide gate valve with by-pass and cavity/pipe pressure equalizing device.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 100 to 420
ND 2" (50) to 24" (600)
Ends: butt welding or flanged or special on request
Operation: handwheel, gear, actuated as per customer request
Special device:
All type of by pass can be supply as per Rigau standard or as per customer
request with one or more valve of any type such as gate, globe.
Equalizing device are also available.
Parallel slide gates valves
Quick opening gate valve with open/close position stops.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 100
ND 2" (50) to 24" (600)
Ends: butt welding or flanged as per NFA and DIN
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive émission stem packing
By Pass
Multi valve by pass
Equalizing line
Special request on demand

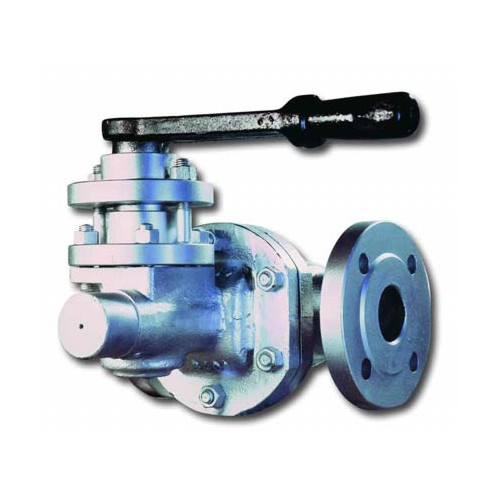

Quick Opening:
On request we can supply quick opening valves with manual device

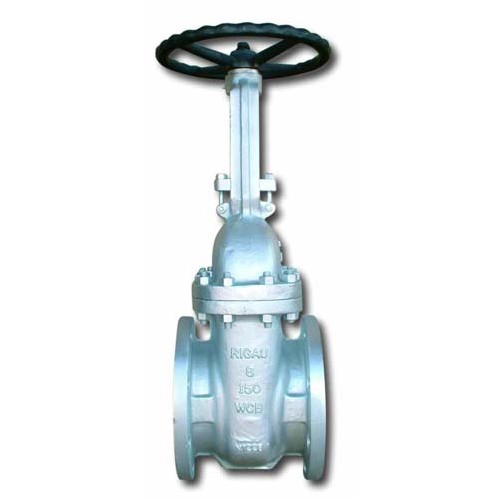

Flexible wedge gate valves - Bolted bonnets
Gate valves for petroleum industry according to the API and ANSI standards.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 36" (900) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
By Pass
Multi valve by pass
Equalizing line
Cryogenic or high temperature design are also available

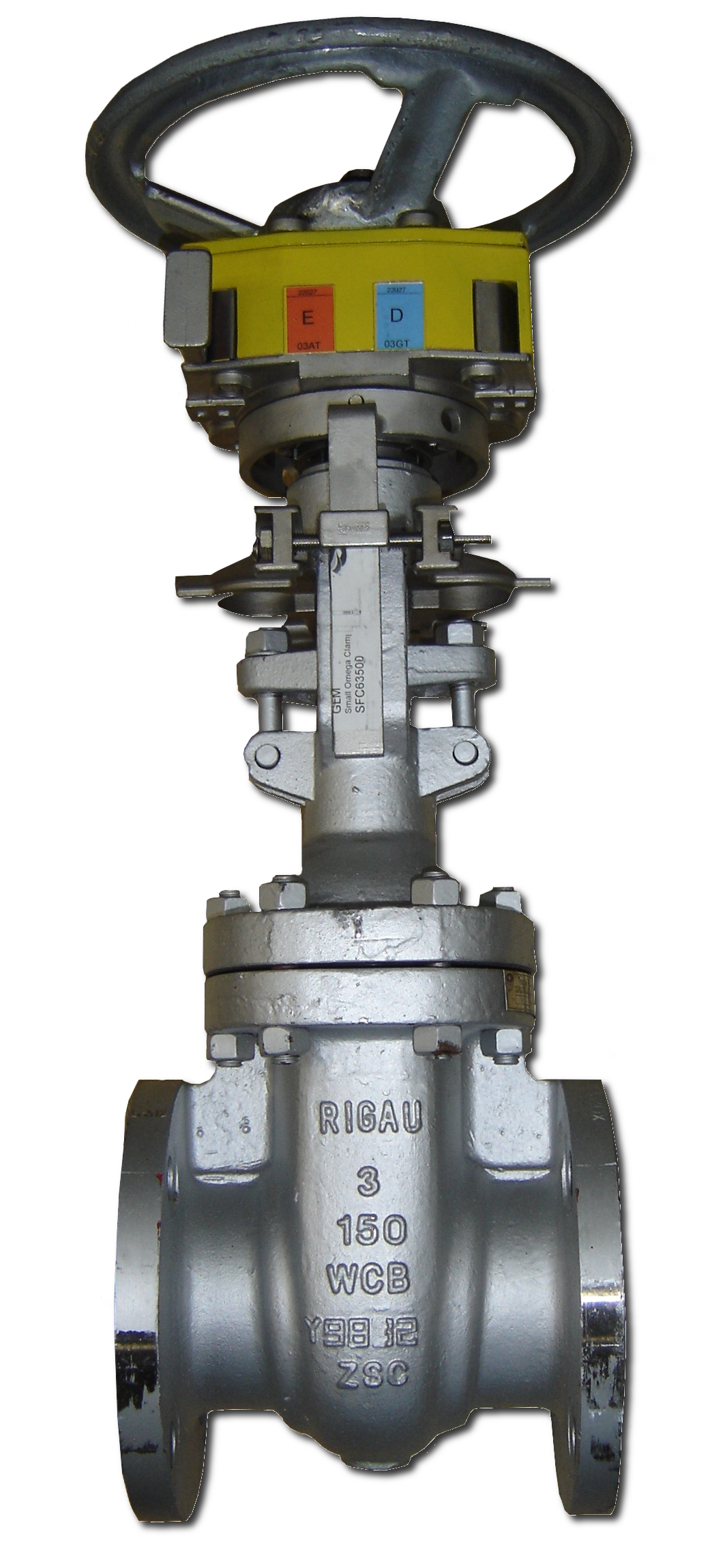

Interlocking system
Globe valves - Bolted bonnets and pressure seal bonnets
Globe valve pressure seal design with electrical actuator with positionner.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 24" (600) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
Equalizing line
Y or angle are also available on request
Globe valves - Bolted bonnets and pressure seal bonnets
Globe valve pressure seal design for flow regulation.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 24" (600) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
Equalizing line
Y or angle are also available on request
Cryogenic globe valves
Cryogenic globe valve for liquid nitrogen application (-196°C)
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 24" (600) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Operation: handwheel, gear, actuated as per customer request
Special device:
Fugitive emission stem packing
Equalizing line
Y or angle are also available on request

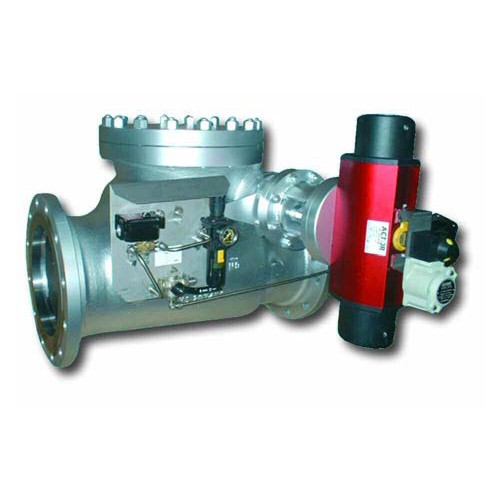

Swing check valves - Bolted bonnets and pressure seal bonnets
Actuated swing check valve with bolted bonnet for steam service.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
Duplex, super duplex
Inconel, incoloy
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 24" (600) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Special Device:
Dash Pot or assited by actuation as per customer request

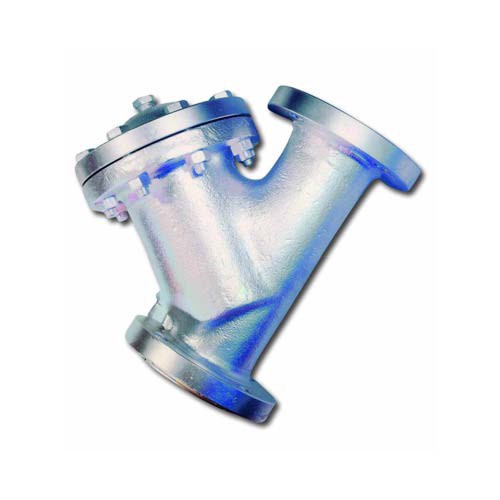

Strainers - Bolted bonnet
For petroleum industry or high pressure steam.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 24" (600) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Special device:
Top cover with plug or valving device are also available
Mesh as per request

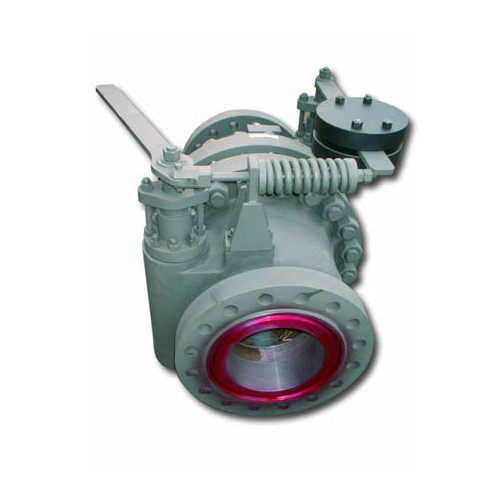

Stop steam swing check valve
Stop steam swing check vavle double acting.
Carbon steel: A 216 WCB/WCC/LCB
Alloy steel: A 217 WC 5,WC6,WC9,C 12 A
All type of stainless steel
CE marking
Class: ASME/ANSI ISO PN 20 to 420
DIN series are also available on request
ND 2" (50) to 24" (600) for ISO PN 20 TO 50
2" (50) to 16" (400) for ISO PN 20 TO 250
2" (50) to 12" (300) for ISO PN 20 TO 420
Ends: butt welding or flanged as per NFA and DIN
Special double effect design are available
